Gate Opener Kit 12V/24V Board review

Are you trying to decide whether the Gate Opener Kit, 12V/24V Board for Automatic Double Arms Swing Gate Opener Control Board Panel Smart Control Center System Replace Fittings for Driveway Home(2RC 1car RC) is the right upgrade for your driveway gate?

Buy Gate Opener Kit 12V/24V Board On Amazon

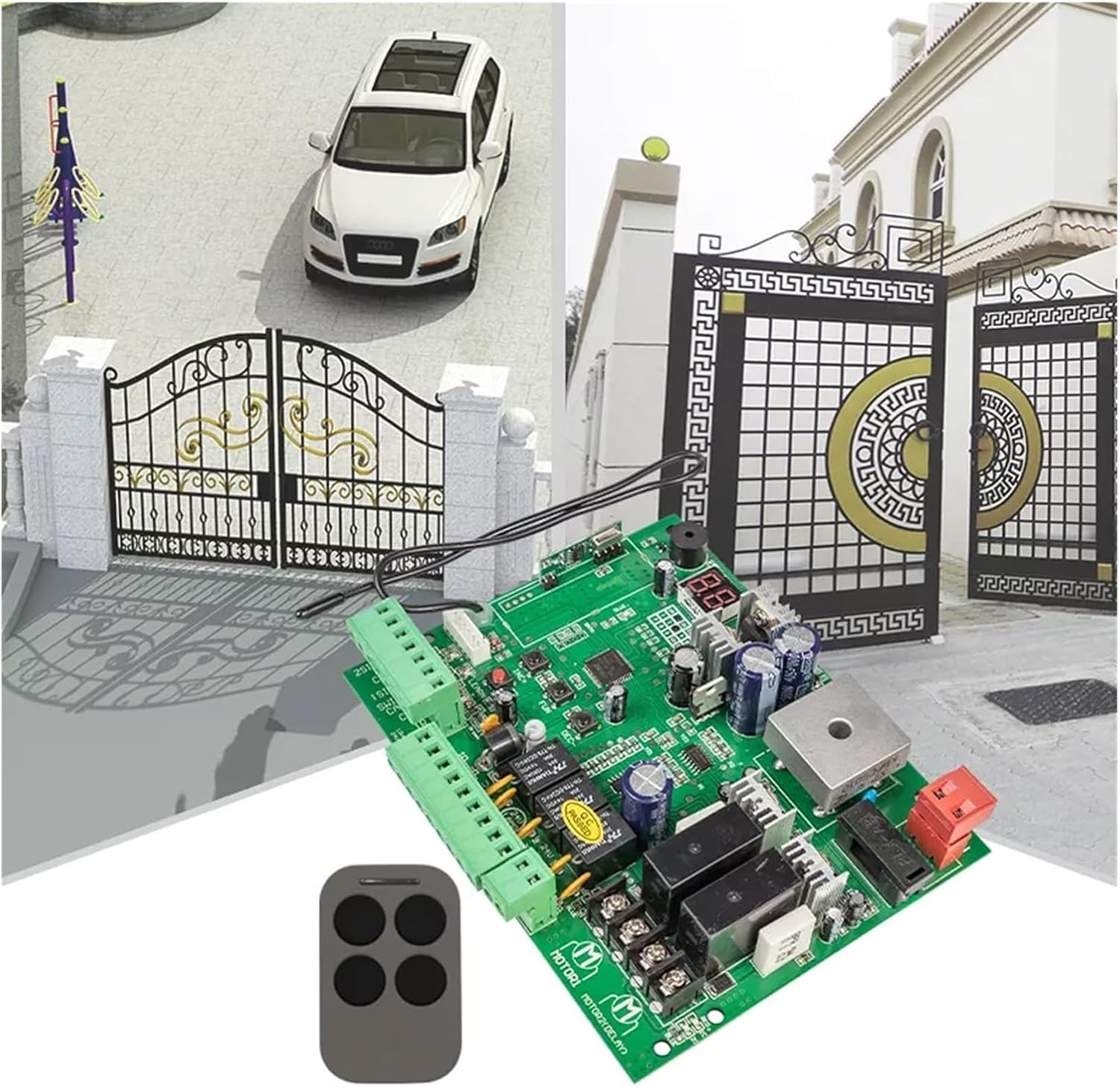

Quick Overview of the Control Board

You want a clear idea of what this board does before you commit, so here’s a short snapshot you can use to decide if it fits your needs. This control board is designed for double-arm swing gate openers and can work with a single gate too, offering adjustable speed and timing features that let you tune how the gates behave.

This smart control center replaces or upgrades existing fittings and provides terminals for a range of safety and access devices, making it a flexible option for many setups.

What this board is intended for

You’ll find this board useful if you have a double gate or a single swing gate and want to control it automatically from remotes, buttons, or access control systems. It supports 12V and 24V motors, which covers most residential swing gate openers.

It’s designed to be the heart of the system: managing motor outputs, safety inputs, remote receivers, and auxiliary devices so your gate reacts correctly to sensors and user commands.

Key Features You’ll Care About

You should look at the capabilities that directly impact operation and safety. This board offers adjustable gate speed, delay timers, dwell (how long the gate stays open), and inputs for loop detectors and photocells for vehicle detection and obstacle sensing.

The terminals accept common external devices such as push-buttons, keypads, and access control units—so you can integrate the board into a more complete entry system.

Why adjustable speed and timing matter

When the speed and timing are adjustable, you can match gate movement to your gate’s weight, hinge friction, and the typical traffic flow at your driveway. That reduces strain on motors and provides smoother operation.

Adjustable dwell and on/off delay let you set how long the gate stays open for vehicles to pass, and how long the system waits before reversing or closing—important for safety and convenience.

Compatibility and Power Requirements

You’ll want to know whether the board will work with your existing motors and accessories. This board supports both 12V and 24V setups, so it can usually fit with low-voltage drive units commonly used in residential installations.

Before you install, verify the nominal voltage of your gate motors and other components. If your motors use a different voltage, you’ll need a compatible board or additional power components.

What to check on your existing system

Check motor voltage, current draw, connector types, and the type of limit switches or encoders you use. You should also confirm physical fitting space and mounting points for the board inside the gate operator housing.

If you have remote receivers or special access control modules, make sure the board’s terminals and wiring layout support them.

Included Controls and Connectivity

Your kit usually includes terminals for a variety of connections: loop detectors, photocells, buttons, keypads, and access control devices. The product name mentions “(2RC 1car RC),” which often means it ships with remote controls—confirm exactly what remotes and how many are included in the listing you buy.

These inputs let you wire normally open (NO) or normally closed (NC) devices so the board can react to safety sensors or trigger devices.

Remote control and receiver notes

If your kit includes remotes and a compatible receiver module, you’ll be able to program those remotes directly into the board. If it doesn’t, the board typically provides an input for an external receiver module or accepts a direct receiver mounting.

Always follow the manual to program remotes and set the correct channel or dip-switch settings to avoid conflicts with nearby systems.

Installation Experience and Tips

You’ll find the installation process is moderately technical: you’ll be connecting power, motors, sensors, and control inputs. If you’re comfortable with low-voltage wiring and basic electronics, you can install it yourself; otherwise, hiring a professional installer is a smart choice to ensure safe, reliable operation.

Work methodically: label wires, take photos of your original connections, and use a proper multimeter to confirm voltages.

Step-by-step installation checklist

You’ll find this checklist helpful during installation:

• Power off all sources and verify isolation.
• Remove the old board and document wiring connections.
• Mount the new board in the housing with secure standoffs.
• Connect battery/transformer, then motor wires, then limit switches.
• Wire inputs for photocells, loop detectors, and external controls.
• Power up and test the board with one gate at a time.
• Program remote controls and set limit/travel points.

Get The Gate Opener Kit 12V/24V Board

Table: Quick Technical Breakdown

This table will help you compare main specs at a glance and decide if the board suits your setup.

Feature	Detail
Supported voltages	12V / 24V
Gate type	Double-arm swing gate or single gate
Speed control	Adjustable speed function
Timing controls	Automatic off/on, on/off delay time adjustment
Dwell control	Adjustable dwell sensitivity (how long gate stays open)
Safety inputs	Terminals for loop detectors, photocells
Access inputs	Terminals for buttons, keypads, access control devices
Remote controls	Often sold with remotes (confirm exact contents: 2RC 1car RC)
Installation difficulty	Moderate (basic electrical/wiring skills needed)
Typical use	Residential driveway gate systems

Programming and Settings You’ll Use Often

You’ll be setting speed, dwell time, and on/off delays most often after installation. The board likely has potentiometers or DIP switches for these settings and may offer push-button programming for remote pairing.

Take it slow when setting speeds: small adjustments can have significant effects on momentum and motor load.

How to set speed and timing safely

Set speed low first to check mechanical clearance, then gradually increase to desired performance. For timing, set a moderate dwell that allows vehicles to pass and test with a family member or helper. For on/off delay, avoid values that could keep the gate in motion when obstacles might be present.

If the board uses limit sensors, ensure travel stops are accurate before relying on timers.

Safety and Compliance Considerations

You’re responsible for ensuring your gate complies with local safety standards, including obstacle detection and safe reversing behavior. This board’s inputs for photocells and loop detectors are essential for meeting those requirements.

Use certified photocells and loop detectors, and test regularly to maintain safety. If your country has specific gate safety regulations, check them and consider professional installation for compliance.

Recommended safety devices

You should pair the board with:

• Primary and secondary photocells (to detect obstacles and people)
• Loop detectors (for vehicle detection)
• Warning lights and sounders (during gate operation)
• Manual release with secured access (for emergency manual operation)

Performance and Reliability Expectations

You can expect smooth operation when the board and motors are matched and properly tuned. The adjustable speed and timing allow you to reduce mechanical stress and optimize cycle time for convenience.

Longevity depends on installation quality, environmental protection (water/dust), and motor condition—boards exposed to moisture or dirt without protection can fail prematurely.

How to keep the system reliable

Regularly lubricate hinges, check wiring for corrosion or chafing, keep the operator housing sealed, and periodically test safety sensors. Replace batteries in remotes and test backup power sources if you have battery backup.

Troubleshooting Common Issues

If the gate doesn’t respond, moves partially, reverses unexpectedly, or behaves erratically, there are common causes you can check. Often these are wiring issues, incorrect voltage, or misadjusted settings.

Start with basics: check fuses, power input voltage, and that motor connectors are secure. Then inspect programming and sensors.

Common symptoms and quick fixes

• Gate doesn’t respond: Verify main power and auxiliary battery, check fuse or breaker, confirm remote battery and programming.
• Gate reverses immediately: Check photocells/loop detectors for blockage or misalignment; verify dwell/obstruction sensitivity settings.
• Slow or weak movement: Confirm motor voltage matches board setting (12V vs 24V); clean and lubricate mechanical parts; check for mechanical binding.
• One gate arm moves but not the other: Inspect motor wiring for loose connections, check individual limit switch settings or motor driver on the board.

Pros: What You’ll Likely Appreciate

You’ll likely like the flexibility and integration options this board offers. Being able to hook up loop detectors and photocells directly simplifies wiring and keeps the control logic centralized.

Adjustable parameters let you tune operation for smoother, safer performance, and compatibility with 12V and 24V systems increases the chances it will fit your existing setup.

Additional benefits

The ability to integrate buttons, keypads, and access control systems means you can grow your system over time. If it includes remote controls, initial setup is quicker for everyday use.

Cons: Limitations and Things to Watch Out For

You’ll need to be careful about environmental protection, correct voltage matching, and ensuring you’ve got the correct remote type and number. Documentation quality can vary with boards like this, so if clear wiring diagrams aren’t provided you might need technical help.

You should also be aware that replacement boards may lack full warranty coverage or local tech support depending on where you buy them.

Practical downsides

Some kits don’t include enclosure seals or mountings, so you may need to adapt your housing. If you’re not comfortable with electrical wiring, labor costs for a professional install should be added to the price.

Who Should Buy This?

You should consider this control board if you’re comfortable with moderate DIY electrical work, have a 12V or 24V swing gate, and want a central control unit that supports common safety and access devices. It’s ideal for homeowners upgrading older controllers or building a new automatic gate setup.

If you want plug-and-play simplicity with extensive local support, you might prefer a branded, dealer-supported system. This board is a stronger fit when you want flexibility and are okay with a hands-on approach.

Who should avoid it

If you aren’t comfortable with wiring, lack a clear manual, or need certified equipment for a commercial installation with strict compliance needs, this may not be the best choice without professional assistance.

Maintenance Schedule You Should Follow

You should establish a simple maintenance routine to keep the system reliable: monthly visual checks, quarterly sensor and wiring tests, and annual full inspections. Replace any worn parts and update programming when adding accessories.

Keep a log of tests and maintenance to track changes and spot patterns before they become failures.

Example maintenance checklist

• Monthly: Check photocell alignment and clean lenses.
• Quarterly: Inspect wiring, tighten terminals, test remotes.
• Annually: Lubricate mechanical parts, test limit switches, inspect operator housing for moisture ingress.

Comparison to Other Control Boards

Compared to fully integrated branded systems, this board offers more flexibility for DIY users and often a lower price. Branded systems can offer better documentation, professional support, and additional certified safety features.

If you value customization and affordability, this board is competitive. If you need long-term support, warranties, and formal certification, consider systems from established manufacturers.

What to weigh in your decision

Consider installation support, spare parts availability, warranty, and compatibility with third-party safety devices. Also factor in the cost of professional installation if you’re not doing it yourself.

Final Verdict and Recommendation

You’ll get a functional, flexible control center for your swing gates with this board, assuming you match voltage and equip the system with recommended safety devices. It’s a practical choice if you want to upgrade or replace a control board and have some DIY skills or access to an installer.

If you prioritize a budget-friendly, feature-rich controller that integrates loop detectors, photocells, and access devices, this product is worth considering. If you need full industry certification or dealer-level service, consider shop options from recognized gate automation brands.

Buying tips

• Confirm the exact remotes and accessories included in the kit before you buy.
• Verify motor voltage and current ratings match the board.
• If documentation is limited, request wiring diagrams or look for community guides.
• Factor in the cost of a protective enclosure or professional installation if needed.

FAQs You’ll Want Answered

Here are common questions you might have and concise answers to help you decide.

• Will this board work with my gate motors?
  Check the motor voltage (12V or 24V) and current draw. If they match, it should be compatible. Verify connectors and limit switch types.

• Can I add more remotes or keypads?
  Yes, the board typically supports programming additional remotes and wiring for keypads or access control devices.

• Are safety photocells required?
  They’re strongly recommended for safe operation and may be required by local regulations.

• What if my gate is heavy or frequently used?
  Properly set speed and timings, ensure robust motor sizing, and consider professional setup for high-cycle installations.

• Is the board weatherproof?
  The board itself is usually mounted inside the operator housing. Ensure your housing is sealed and protected from moisture and dust.

Useful Accessories You Might Want

You should consider these accessories to get the most reliable, safe operation:

• Photocell pairs for safety
• Inductive loop detector for vehicle presence detection
• External battery backup for power outages
• Enclosed receiver (if not included)
• Gate warning light or siren

Why these accessories help

They add safety, convenience, and redundancy. Photocells and loop detectors prevent accidents, battery backup maintains operation during outages, and visual/audible warnings alert people to gate movement.

Troubleshooting Resources and When to Call a Pro

If instructions are limited, user forums and community videos can help. However, call a professional when you encounter:

• Repeated electrical faults or fuses blowing
• Complex wiring differences (e.g., encoder-based limits)
• Inadequate sealing leading to corrosion
• Any safety-critical issue where regulation compliance is involved

A pro can confirm correct motor sizing, adjust drive parameters safely, and ensure compliance with local codes.

Closing Thoughts

You’ll be upgrading to a versatile, adjustable controller capable of integrating standard safety and access devices for residential swing gates. With correct installation and safety add-ons, it can give you smoother gate operation and more reliable control.

Take your time matching the board to your motors and sensors, and consider professional help if you’re unsure about wiring or compliance. With the right setup, this Gate Opener Kit, 12V/24V Board for Automatic Double Arms Swing Gate Opener Control Board Panel Smart Control Center System Replace Fittings for Driveway Home(2RC 1car RC) can become a dependable part of your home entry system.
