?Are you trying to decide whether the REOLINK 8CH 5MP Security Camera System, 4pcs Wired PoE Cameras for Home Security Outdoors, Smart Person/Pet/Vehicle Detection, 4K 8CH NVR with 2TB HDD for 24-7 Recording, RLK8-410B4-5MP White is the right choice for your property?
Buy The REOLINK RLK8-410B4-5MP 8CH 5MP PoE Camera System On Amazon
Quick verdict
You get a solid, all-in-one wired PoE security package that emphasizes video clarity, simple installation, and smart motion filtering. If you want a camera system that reduces false alerts, records continuously to a pre-installed HDD, and gives you decent night vision, this kit is worth a close look.
REOLINK 8CH 5MP Security Camera System, 4pcs Wired PoE Cameras for Home Security Outdoors, Smart Person/Pet/Vehicle Detection, 4K 8CH NVR with 2TB HDD for 24-7 Recording, RLK8-410B4-5MP White
$389.98 In Stock
Product overview
You’re looking at an 8-channel NVR kit that ships with four 5MP PoE cameras and a 2TB HDD pre-installed. The system is designed for 24/7 recording, wired stability, and smarter motion detection that helps cut down noise from non-threatening movement.
What this kit includes
You’ll find four wired PoE cameras, an 8-channel NVR with a pre-installed 2TB hard drive, power/video PoE cables integrated through single Ethernet runs, and basic mounting hardware. The package is meant for a DIY-friendly install, but you’ll still want to plan camera placement and cable routes before starting.
Technical specifications at a glance
You’ll appreciate a compact, quick-reference table that summarizes the most important specs so you can confirm fit for your use-case before digging deeper.
| Item | Specification |
|---|---|
| Cameras | 4 × 5MP wired PoE IP cameras |
| NVR Channels | 8 channels |
| Pre-installed HDD | 2TB |
| Night vision | 18 infrared LEDs, up to ~100 ft (30 m) |
| Smart detection | Person, vehicle, and animal detection (firmware dependent) |
| Power & Data | Power over Ethernet (single cable per camera) |
| Additional storage | eSATA port for up to 8TB external HDD |
| Audio | Built-in microphone in cameras |
| Continuous recording | Yes, 24/7 possible (HDD capacity-dependent) |
| Remote access | Reolink app and client software |
| Model | RLK8-410B4-5MP White |
Design and build quality
The cameras and NVR are built as a matching set, with a neutral white finish that blends into many home exteriors. You’ll notice the cameras feel solid and mount securely; their housings give you confidence for outdoor use, though you should check local specs or product documents for IP rating if you need specific weatherproof guarantees.

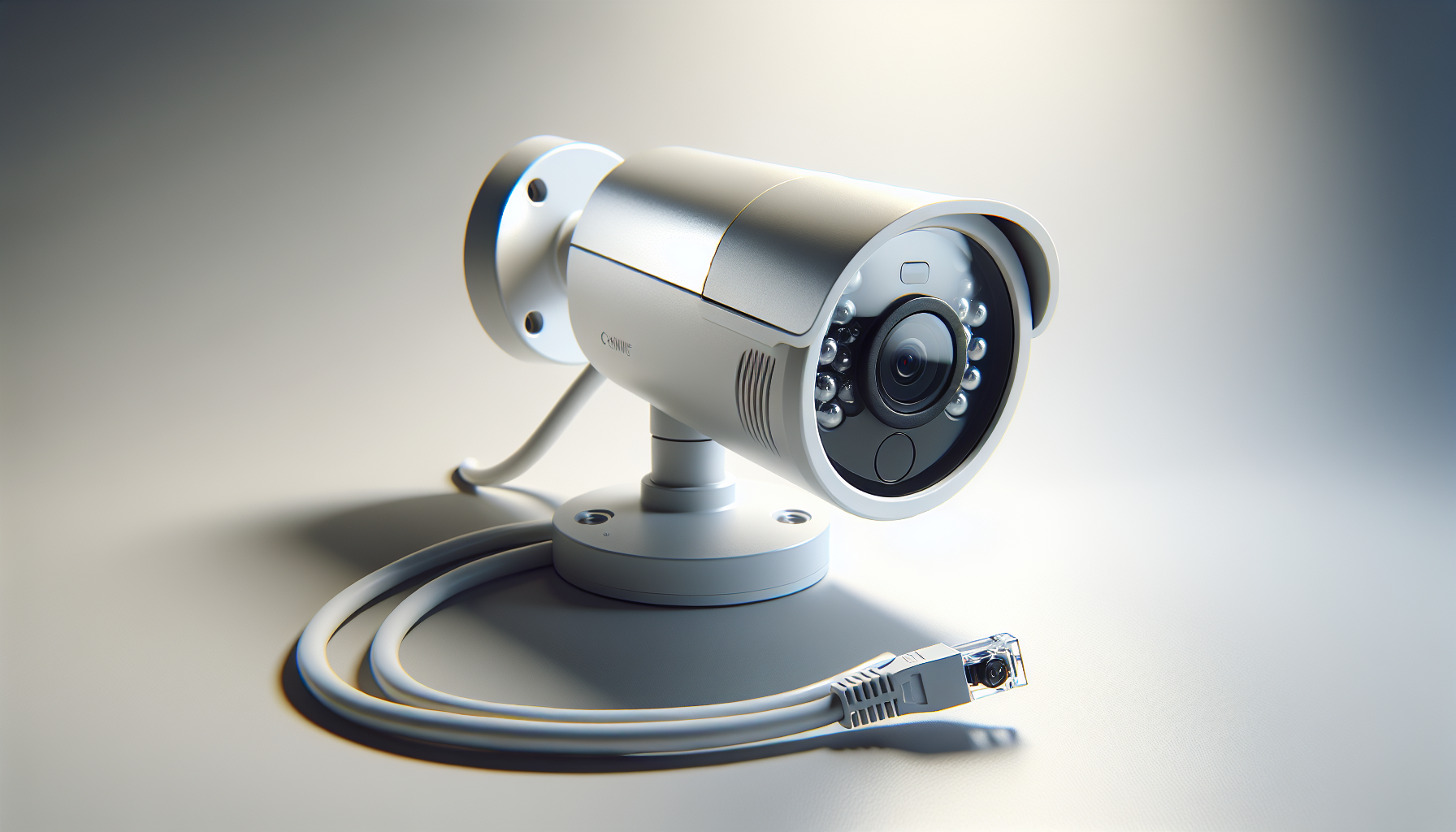

Camera housing and mount
Each camera uses a standard bracket design that lets you tilt and pan manually during installation, and the mount hardware is straightforward for wall or soffit placements. You’ll find the cables route through the mount to keep things tidy and somewhat protected from the elements.
NVR unit and ports
The NVR is compact and meant for indoor placement near your router or switch. You’ll have Ethernet PoE ports for each camera, HDMI/VGA outputs for local monitoring, USB ports for mouse or export, eSATA for extra storage, and a pre-installed 2TB HDD for immediate recording needs.
Image quality: daytime and color performance
You’ll get 5MP (about 2560×1944 or similar) resolution which gives noticeably sharper images than 1080p systems and better detail for identifying faces and license plates at moderate distances. Color reproduction is natural in well-lit scenes and the higher resolution helps keep fine details visible when you digitally zoom in during playback.
Daytime clarity and field of view
The cameras offer a reasonably wide field of view suitable for monitoring doors, driveways, and yards without extreme fisheye distortion. You’ll be able to catch key details at ranges typical for home security setups—just plan camera placement to avoid placing subjects at the very edge of each camera’s view.
Image settings you can control
You’ll be able to tweak brightness, contrast, sharpness, and other image settings through the NVR or the Reolink app to tailor images to your lighting environment. You should take time to adjust these after installation for the cleanest possible footage given your environment and mounting locations.
Night vision performance
You’ll benefit from 18 infrared LEDs per camera that push night vision range up to about 100 ft (30 m) in clear conditions. For typical home installations, that’s more than enough for front yards, driveways, and backyard perimeters.
Infrared clarity and distance
Infrared night vision gives crisp monochrome images at night, and the cameras manage contrast well so you can still see building outlines and human silhouettes. Keep in mind that IR performance depends on ambient reflectivity and placement—glass or shiny surfaces can affect clarity.
Low-light color modes and supplemental lighting
If you have ambient street or porch lighting, the camera may capture color at night in low-light scenarios, which can be helpful for identification. If color at night is critical, you can add auxiliary lighting (warm floodlights or motion-activated lights) to improve detail without overreliance on IR.
Smart motion detection: person, vehicle, and animal filters
You’ll find the smart motion detection feature particularly useful because it aims to reduce false alerts by classifying motion as person, vehicle, or animal. This helps you only get notified for events you care about, rather than every flutter of leaves or bug crossing the lens.
How the classification works
The system uses on-device or NVR-assisted algorithms (firmware-dependent) to analyze motion signatures and categorize them. You’ll need to ensure your system is updated to the latest firmware to enable and take advantage of these filters for improved alert relevance.
Tuning alerts for your needs
You can configure which categories generate alerts, set sensitivity, and adjust detection zones within the app. You’ll find that spending a little time tuning these parameters after installation dramatically reduces noise and improves the usefulness of push notifications.
PoE and installation simplicity
You’ll love the single-cable concept of PoE (Power over Ethernet) because each camera uses one Ethernet cable for both power and data. That means faster, neater installs and fewer things to troubleshoot later.
Plug-and-play setup basics
To install, you run an Ethernet cable from each camera to the NVR’s PoE port and it handles power and video without separate adapters. If you’re new to wiring, this is one of the most approachable wired systems—you just need to plan cable runs and possibly drill through walls or soffits for tidy routing.
Cable quality and maximum lengths
Ethernet cable quality matters: use outdoor-rated Cat5e or Cat6 for outdoor runs and maintain the standard 100-meter (328 ft) maximum for PoE without additional extenders. You’ll also want to protect connections from moisture and secure cables so animals or wind don’t stress terminations.
Continuous recording, storage, and playback
You’ll get a 2TB HDD pre-installed which is sufficient for days of continuous 24/7 recording across four 5MP channels, depending on bitrate and recording mode. Reolink provides flexibility for continuous, scheduled, or motion-only recording so you can balance retention against space.
Pre-installed 2TB HDD: how long will it keep footage?
With 5MP resolution and continuous recording across four cameras, expect roughly 7–14 days of footage on a 2TB drive depending on video compression, frame rate, and scene activity. Motion-only recording extends that significantly, allowing you to keep weeks of events if traffic is low.
Expandability via eSATA and additional drives
You’ll be able to add an external HDD via the NVR’s eSATA port—Reolink supports up to an additional 8TB external drive—so you can expand retention significantly without swapping drives. If local retention is critical, plan to add storage or offload to a NAS.
Recording modes and export
You’ll have continuous (24/7), scheduled, and motion-triggered recording modes, plus the ability to export clips via USB or the app. You’ll appreciate the playback timeline that lets you scrub through footage and download clips for evidence or sharing.
Audio capabilities
You’ll get a built-in microphone in the cameras that records ambient sound to accompany your video. Audio can provide additional context for events—like hearing footsteps, voices, or vehicle sounds—but it’s not a substitute for a two-way audio intercom since the cameras do not typically include a built-in speaker for direct live conversation.
Audio recording quality and limitations
Mic pickup quality is suitable for general ambient sound; you’ll capture nearby noises but not long-range audio or fine details at distance. If you need two-way communication, you should confirm whether the NVR firmware and camera model support external speaker add-ons or consider a separate doorbell/intercom solution.
Privacy and legal considerations
You’ll want to be aware of local laws regarding audio recording—some jurisdictions require consent to record sound. Configure audio capture responsibly and inform occupants or neighbors if recordings include shared spaces.
Remote access and the Reolink app
You’ll be able to view live feeds and playback remotely using the Reolink app or client software. The app allows push notifications for events, two-tier user access, and basic settings adjustments without needing to be at the NVR.
Mobile and desktop experience
The Reolink app supports live view, playback, and alarm management on iOS and Android, while the desktop client offers more detailed controls for large-screen monitoring. The app’s interface is generally intuitive: you can view multi-channel grids, pinch-to-zoom, and play recorded clips with timestamps.
Remote reliability and network considerations
Remote viewing depends on your home network and upload bandwidth. You’ll want to set up port forwarding or use Reolink’s cloud P2P service (if available) for easier remote access and ensure your upload speed supports simultaneous remote streams without lag, particularly if you use multiple simultaneous viewers.
Performance in different environments
You’ll get reliable results in typical suburban and urban home settings, from driveway monitoring to backyard coverage. Dense vegetation, bright backlighting, or very reflective surfaces can still challenge any camera, so appropriate placement and camera angle adjustments are important.
Bright light and backlighting scenarios
The camera handles dynamic scenes well, but you should avoid pointing cameras directly at low sun angles or strong backlights. If you can’t avoid backlighting, use slight downward tilt, and rely on exposure adjustments to keep subjects visible.
Weather and outdoor durability
The system is intended for outdoor use; just make sure you use proper cable protections and seal mounting points to minimize water ingress. For coastal or extremely harsh conditions, consider additional protective measures like silicone sealant at cable exits or conduit runs.
User interface and NVR features
You’ll find the NVR’s local interface provides multi-channel live view, scheduled recording, backup/export, user account control, and alarm configuration. The on-screen menu is functional, letting you view timestamps, check drive health, and manage recording priorities.
Managing users and permissions
You’ll be able to set up multiple user accounts with varying permissions so you can give family members or caretakers access to live view but restrict administrative actions. This is useful if you want others to monitor without changing system settings.
Firmware updates and support
Firmware updates are important to enable the latest detection improvements and security patches. You’ll want to check the Reolink support site or the NVR menu regularly for firmware updates and follow instructions to update safely.
Pros and cons
You’ll find this section helpful to quickly weigh the advantages and trade-offs so you can decide if this system fits your priorities.
Pros
- You get better-than-1080p resolution (5MP) that improves identification and zoomed detail.
- PoE simplifies installation by using a single cable for power and data.
- Smart person/vehicle/animal detection reduces false alerts when properly configured.
- Pre-installed 2TB HDD is convenient and enables immediate recording out of box.
- Built-in microphones add audio context to recorded video.
Cons
- 5MP files are larger and require more storage than 1080p; larger HDDs cost extra.
- No built-in two-way audio (speaker) for direct communication at the camera.
- Smart detection quality depends on firmware and may require occasional tuning.
- If you need extremely long retention at high resolution, additional storage is required.
How it compares to alternatives
You’ll see different trade-offs if you compare this wired PoE system to wireless camera systems, 4K kits, or hybrid DVR setups.
Wired PoE vs wireless systems
PoE systems like this one give more stable feeds and consistent image quality because the signal is digital and not affected by Wi-Fi interference; however, they require more planning for cable routing. Wireless is easier to place but can be less reliable and may require more attention to battery management or power supplies.
5MP vs 4K or 1080p
You’ll get better detail than 1080p, but not quite the pixel density of true 4K (8MP). For most residential needs, 5MP is a practical middle ground—better detail and lower storage needs than 4K while clearly surpassing 1080p in identification tasks.
Who should buy this system?
You’ll benefit if you want a stable, wired solution for home or small business monitoring with simple installation and better alert accuracy. This kit suits homeowners who prefer local storage and want to avoid monthly cloud fees, but still need app-based remote access.
Ideal use cases
- Driveway and garage monitoring where identifying vehicles and people matters.
- Perimeter coverage for backyards and property lines.
- Small business storefront monitoring requiring continuous recording.
Who might want something else
If you need two-way audio or 4K ultra-high definition for very long-range license plate reading, you may prefer a different model or add-on components. If you can’t run cables easily, a wireless solution might be more convenient.
Practical installation tips
You’ll save time and improve results by planning cable paths, angle placement, and network topology before you install. A basic checklist helps avoid rework.
Pre-install checklist
- Map camera locations with approximate field-of-view sketches.
- Measure cable runs and buy slightly longer Ethernet (Cat5e/6) than estimated.
- Choose mounting heights that reduce spoofing by animals and provide face/plate-level detail.
- Test cameras connected near the NVR before final mounting to confirm angles and focus.
Finalizing installation
You’ll want to seal cable penetrations and stabilize PoE connections to keep moisture out. After everything’s mounted, perform night and day tests and tweak detection zones and sensitivity to reduce false alarms.
Troubleshooting common issues
You’ll encounter a few typical problems that are easy to fix with basic checks and adjustments.
If a camera drops offline
Check cable terminations, verify PoE port LEDs on the NVR, and swap ports or cables to isolate the issue. Also confirm the NVR firmware and camera firmware are up to date.
If you get too many false alerts
Adjust detection zones, reduce sensitivity, and limit which categories (person/animal/vehicle) produce alerts. Updating firmware can also improve detection performance.
If remote view is laggy
Check your home upload bandwidth and the remote device’s network. Limit simultaneous remote streams or reduce resolution for remote viewing to improve responsiveness.
Security and privacy considerations
You’ll want to secure your NVR and app access with strong passwords, keep firmware updated, and avoid exposing your device to the internet without proper protections. Use unique passwords, enable 2FA on accounts if offered, and use secure networks for remote access.
Data retention and privacy practices
You’re in control of where footage lives—on the NVR locally and optionally on external drives. If you use any cloud services for backup or alerts, review their privacy policy and data handling procedures before enabling cloud features.
Purchase REOLINK RLK8-410B4-5MP (8CH 5MP PoE) — Shop On Amazon
Final recommendation
You’ll find the REOLINK 8CH 5MP Security Camera System RLK8-410B4-5MP White to be a compelling choice if you want a reliable, wired PoE solution with better-than-HD image quality, smart detection filters, and local recording ready out of the box. It balances resolution, storage flexibility, and practical features for typical home and small business needs.
Frequently asked questions
You’ll likely have specific practical questions; here are answers to common ones.
How many days of footage will 2TB hold?
It depends on resolution, frame rate, compression, and scene activity. For four 5MP cameras recording continuously at typical bitrates, expect roughly 7–14 days. Motion-only recording greatly extends retention.
Can you add more cameras?
Yes—you can add up to 8 PoE cameras to the NVR, though this kit includes four. Plan for additional cabling and bandwidth if you expand.
Do the cameras require the internet to work?
No—the cameras and NVR will record locally without internet. Internet is only needed for remote viewing, app alerts, or firmware updates.
How do you update firmware?
You can update firmware through the NVR interface or via the Reolink support site. Always follow Reolink’s instructions and back up settings if recommended.
Is the person/vehicle detection perfect?
No detection system is perfect. Smart detection reduces false positives but requires firmware updates and fine-tuning to your environment for best performance.
Can you use third-party cameras or NVRs?
The NVR supports standard PoE IP cameras that comply with ONVIF standards, but compatibility depends on firmware and camera features. If you plan a mixed system, test compatibility first.
If you want, you can provide details about your property (number of buildings, typical lighting, camera mounting heights) and you’ll get tailored placement advice and storage planning to match your needs.
